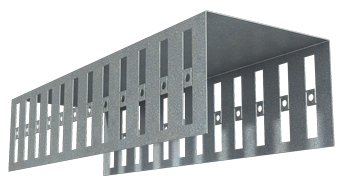

Introducing VertiTrack VT, a slotted deflection track improvement allowing for vertical movement in interior walls. This unique, patent-pending assembly enables a positive attachment between the track and stud flanges to prevent the transfer of forces into the drywall, which could cause damage and violate the fire rated assemblies.

(click image to enlarge)

Quick Overview

Integral bushing provides for quick and accurate placement without the need to back out screws.

Standard #8 Modified Truss-Head screws (minimum 11mm or 0.426" wide screw head) can be fully tightened.

Load rated, positive mechanical attachment.

Connection allows up to 1 ½" total vertical deflection

Slots are spaced at 1" centers, allowing for virtually any stud spacing.

Staggered guide holes in VertiTrack's web provide for structural attachment using PAF's or screws.

Manufactured from certified ASTM A653/A653M grade 50, 50 ksi minimum yield, G60 minimum coating galvanized material.

Exceeds cycling standards found in ASTM E 1966 and UL2079. Rated for movement types I, II, and III.

Interested in this item or want more information?
Call Mon. through Fri. 6:30 AM - 5:00 PM PST
Phone: (866) 931-8027
Email: Sales@CFCdelivers.com

Can't find what you want? Give us a call and we can help you find it.

Additional Information

Manufacturer: The Steel Network

For More Information on the Interior Track, [Click Here] to Link to Manufacturer Web Site
