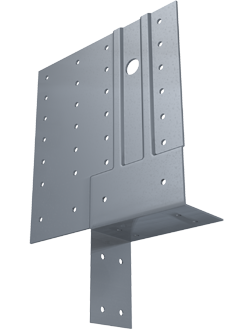

The StiffClip HE series is used when connecting either beams to columns or headers to jambs. StiffClip HE's unique design incorporates stiffened ribs to protect the header ends from the effects of web crippling. StiffClip HE transfers horizontal and large vertical loads from the beam to the column while incorporating a small shelf tab for alignment of box header during installation. The allowable design load table shown below is based on the use of StiffClip when attached to various steel column and beam material thicknesses and yield strengths. The minimum combination of steel thickness and yield strength must be used when determining the maximum design load. Design loads listed below consider both loads on the clip and the #10 screws as they are fastened to the steel beam and column members.

(click image to enlarge)

Quick Overview

Guide holes for connections to column and box header

Resists vertical and horizontal loads

Acts as a web stiffener

Tabs to hold header during installation

Reduces material (no jack studs or caps required)

Reduces labor expense

Extensively tested
