Hollow-Set Dropin

09340

Anchors Powers DeWalt

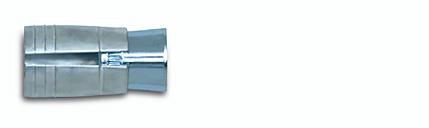

The Hollow-Set Dropin anchor is designed for anchoring in hollow base materials
(click image to enlarge)
Quick Overview

  • Anchoring to Concrete Block
  • Suspending Conduit
  • Cable Trays and Strut
  • Pipe Supports
  • Fastening to Precast Hollow Core Plank
  • Fire sprinkler
  • Suspended Lighting
  • Removable Anchorage
Interested in this item or want more information?
Call Mon. through Fri. 6:30 AM - 5:00 PM PST
Phone: (866) 931-8027
Email: Sales@CFCdelivers.com

Can't find what you want? Give us a call and we can help you find it.
Details

Hollow-Set Dropin    Internally Threaded Expansion Anchor

Product Description :
The Hollow-Set Dropin anchor is designed for anchoring in hollow base materials such ashollow concrete block and precast hollow core plank. It can also be used in solid base materials.Precast plank or concrete masonry blocks often have a maximum outer wall thicknessof 1-1/2". During the drilling process, spalling on the back side of the wall often decreasesthe wall thickness, leaving only 1" or less for anchoring. The Hollow-Set Dropin is designedto perform in this environment, where most conventional style anchors will not function properly.

General Applications and Uses :

  • Anchoring to Concrete Block
  • Suspending Conduit
  • Cable Trays and Strut
  • Pipe Supports
  • Fastening to Precast Hollow Core Plank
  • Fire sprinkler
  • Suspended Lighting
  • Removable Anchorage


  • Features and Benefits :
    + Internally threaded anchor for easy bolt removability and service work
    + Unique expansion design allows for anchoring in thin-walled base materials such ashollow concrete block and precast hollow core plank
    + Versatile setting options allows for hollow or solid base materials
    + Tested in accordance with ASTM E488 and AC01 criteria

    Approvals and Listings :
    FM Global (Factory Mutual) - File No. 15219/1952, 3/8”, 1/2” and 5/8” diameters.Pipe hanger components for automatic sprinkler systemsUnderwriters Laboratories (UL) File EX 1289 (Hanger, Pipe), 3/8”, 1/2” and 5/8”.

    Guide Specifications :
    CSI Divisions: 03151-Concrete Anchoring, 04081-Masonry Anchorage and 05090-MetalFastenings. Dropin anchors shall be Hollow-Set Dropin as supplied by PowersFasteners, Inc., Brewster, NY.


    View Product Specification

    View Submittals
    English
    Additional Information
    Manufacturer: Anchors Powers DeWalt
    For More Information on the Hollow-Set Dropin, [Click Here] to Link to Manufacturer Web Site
