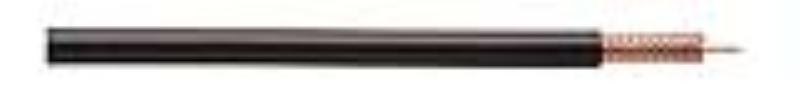

Coleman Cables Rg213 12.5Bc 96 Bc

991073

Coleman Cable - CCI

Rg213 12.5Bc 96 Bc
(click image to enlarge)
Quick Overview
    Features & Application :-
    • RG 213 Type
    • PE Dielectric
    • PVC Jacket
Interested in this item or want more information?
Call Mon. through Fri. 6:30 AM - 5:00 PM PST
Phone: (866) 931-8027
Email: Sales@CFCdelivers.com

Can't find what you want? Give us a call and we can help you find it.
Details

Construction Parameters

Electrical Properties

Wall (in)* OD (in)*
Conductors 12.5 AWG (7/.0296) Bare Copper - 0.089
Dielectric Polyethylene color natural0.0980.285
Shielding 96% Bare Copper Braid -0.315
JacketPVC0.0450.405
Impedance (ohms)-50
Capacitance (pF/ft) - 30.8
Velocity of Propagation (%) -66
Attenuation (Max. db/100 ft) 50 MHz 1.6
100 MHz2.2
200 MHz3.2
400 MHz4.7
900 MHz8.8
1000 MHz8.9
Additional Information
Manufacturer: Coleman Cable - CCI
For More Information on the Coleman Cables Rg213 12.5Bc 96 Bc, [Click Here] to Link to Manufacturer Web Site
