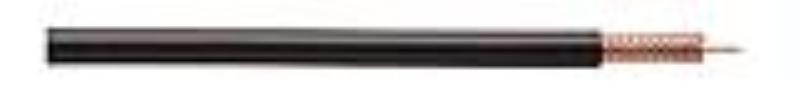

Coleman Cables Rg59 22Ccs 95 Bc

991057

Coleman Cable - CCI

Rg59 22Ccs 95 Bc
(click image to enlarge)
Quick Overview
    Features & Applications:-
  • RG59 Type
  • PE Dielectric
  • PVC Jacket
    • Interested in this item or want more information?
    Call Mon. through Fri. 6:30 AM - 5:00 PM PST
    Phone: (866) 931-8027
    Email: Sales@CFCdelivers.com

    Can't find what you want? Give us a call and we can help you find it.
    Details

    Construction Parameters

    Electrical Properties

    Wall (in)* OD (in)*
    Conductors 22 AWG (1/.025) Solid Copper Clad Steel (30% conductivity) - 0.032
    Dielectric Solid Polyethylene color natural0.0590.143
    Shielding95% Solid Bare Copper Braid -0.171
    JacketPVC0.0360.242
    VALUE*
    Conductor Resistance (ohms/kft)- 55
    Impedance (ohms)- 73.5
    Capacitance (Max. pF/ft) - 22
    Velocity of Propagation (%) - 66
    Attenuation (Max. db/100 ft) 50 MHz2.4
    100 MHz3.4
    200 MHz4.8
    400 MHz7.1
    900 MHz10.2
    Additional Information
    Manufacturer: Coleman Cable - CCI
    For More Information on the Coleman Cables Rg59 22Ccs 95 Bc, [Click Here] to Link to Manufacturer Web Site
