M17/28-Rg058
988591
Coleman Cable - CCI

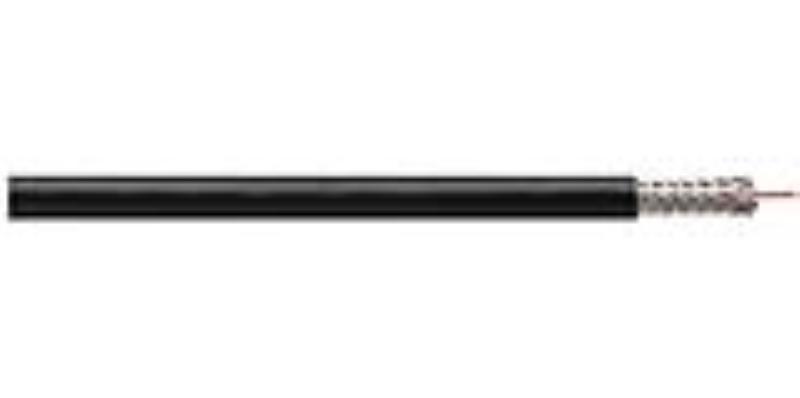

(click image to enlarge)
Quick Overview
Features& Application:-
Manufactured in accordance with, tested & certified to individual Slant Sheets ie:(M17/028-RG058)
RoHS & REACH compliant insulating compounds
Test Reports with manufacturing lot for each & every cable
Certificate of Compliance with MIL-DTL-17
Made in the USA
High frequency RF antenna for ground support equipment
Radar systems & flight guidance equipment
Secure & cryptic aerospace communications
Interested in this item or want more information?
Call Mon. through Fri. 6:30 AM - 5:00 PM PST
Phone: (866) 931-8027
Email:
Sales@CFCdelivers.com
Can't find what you want? Give us a call and we can help you find it.
Details
Construction Parameters
Wall (in)*
OD (in)*
Conductor
20 AWG (19/33) Tinned Coated Copper
0.035
Dielectric
Solid Polyethylene color natural
0.041
0.116
Shielding
93% Tinned Coated Copper Braid
0.138
Jacket
PVC (Non-Contaminating Vinyl)
0.029
0.195
Electrical Properties
VALUE*
Conductor Resistance (Max./100 ft)
1.24
Impedance (ohms)
50
Capacitance (Max. pF/ft)
32.2
Velocity of Propagation (%)
66
Attenuation (Max db/100 ft)
50 MHz
4
100 MHz
6.5
400 MHz
17.0
1000 MHz
28.0
SRL (Min: dB)
100 MHz
27.3
500 MHz
25.0
800 MHz
24.0
1000 MHz
24.5
Additional Information
Manufacturer: Coleman Cable - CCI
For More Information on the M17/28-Rg058,
[Click Here]
to Link to Manufacturer Web Site
