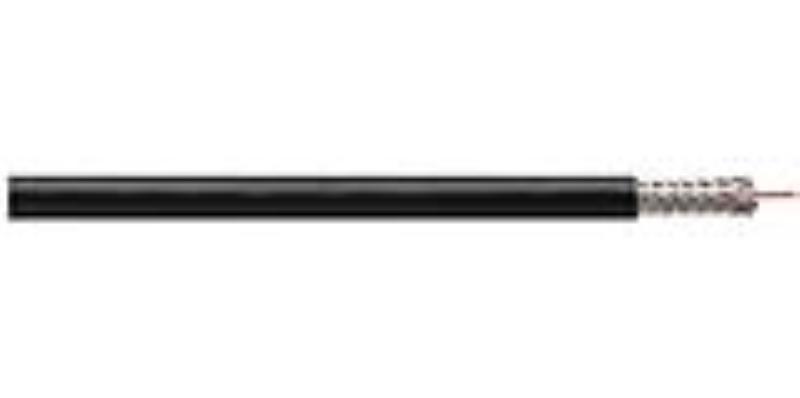

M17/45-Rg108

988463

Coleman Cable - CCI

(click image to enlarge)
Quick Overview
    Features& Application:-
    • Manufactured in accordance with, tested & certified to individual Slant Sheets ie:(M17/028-RG058)
    • RoHS & REACH compliant insulating compounds
    • Test Reports with manufacturing lot for each & every cable
    • Certificate of Compliance with MIL-DTL-17
    • Made in the USA
    • High frequency RF antenna for ground support equipment
    • Radar systems & flight guidance equipment
    • Secure & cryptic aerospace communications
Interested in this item or want more information?
Call Mon. through Fri. 6:30 AM - 5:00 PM PST
Phone: (866) 931-8027
Email: Sales@CFCdelivers.com

Can't find what you want? Give us a call and we can help you find it.
Details

Construction Parameters

OD (in)*
Part 1:Conductor:20 AWG (7/28) Stranded Tinned Copper0.038
Dielectric:Solid Polyethylene Natural in color0.080
Part 2:Conductor:20 AWG (7/28) Stranded (6 Strands Tinned Copper, 1 Strand Bare Copper)0.038
Dielectric:Solid Polyethylene Natural in color0.080
Assembly:Stranding:Part 1 & Part 2 stranded together with 2-1/2” Right Hand lay0.160
Shielding:80% Tinned Copper Braid0.182
Jacket:Non-Contaminating Type II PVC0.175 x 0.235 + - .010
Additional Information
Manufacturer: Coleman Cable - CCI
For More Information on the M17/45-Rg108, [Click Here] to Link to Manufacturer Web Site
