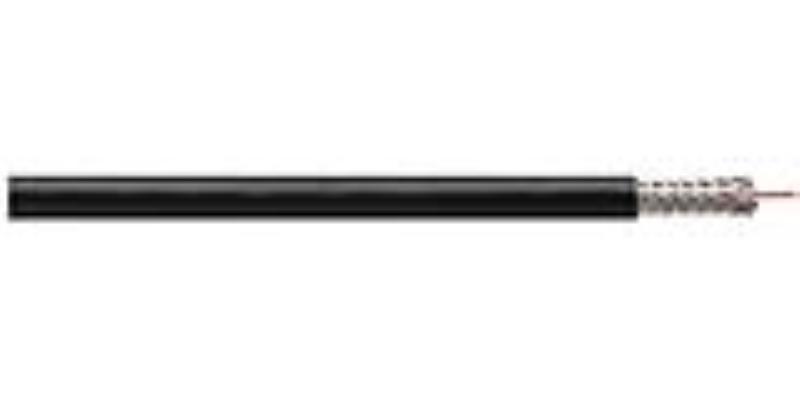

Coleman Cables M17/75-Rg214
988421
Coleman Cable - CCI
M17/75-Rg214
(click image to enlarge)
Quick Overview
Features & Application:-
Manufactured in accordance with, tested & certified to individual Slant Sheets ie:(M17/028-RG058)
RoHS & REACH compliant insulating compounds
Test Reports with manufacturing lot for each & every cable
Certificate of Compliance with MIL-DTL-17
Made in the USA
High frequency RF antenna for ground support equipment
Radar systems & flight guidance equipment
Secure & cryptic aerospace communications
Interested in this item or want more information?
Call Mon. through Fri. 6:30 AM - 5:00 PM PST
Phone: (866) 931-8027
Email:
Sales@CFCdelivers.com
Can't find what you want? Give us a call and we can help you find it.
Details
Construction Parameters
Wall (in)*
OD (in)*
Conductors
12.5 AWG (7/.030) Silver Coated Copper
-
0.089
Dielectric
Solid Polyethylene color natural
0.098
0.285
1st Shielding
96% Silver Coated Copper Braid
-
0.313
2nd Shielding
98% Silver Coated Copper Braid
-
0.341
Jacket
PVC (Non-Contaminating Vinyl)
0.042
0.425
Electrical Properties
VALUE*
Conductor Resistance (Max./100 ft)
-
0.17
Impedance (ohms)
-
50
Capacitance (Max. pF/ft)
-
32.2
Velocity of Propagation (%)
-
66
Attenuation (Max. db/100 ft)
50 MHz
1.7
400 MHz
5.5
3000 MHz
28
11000 MHz
60
SRL (Max db/100 ft)
1.0 GHz
20
3.0 GHz
19
5.0 GHz
18
11.0 GHz
17
Additional Information
Manufacturer: Coleman Cable - CCI
For More Information on the Coleman Cables M17/75-Rg214,
[Click Here]
to Link to Manufacturer Web Site
