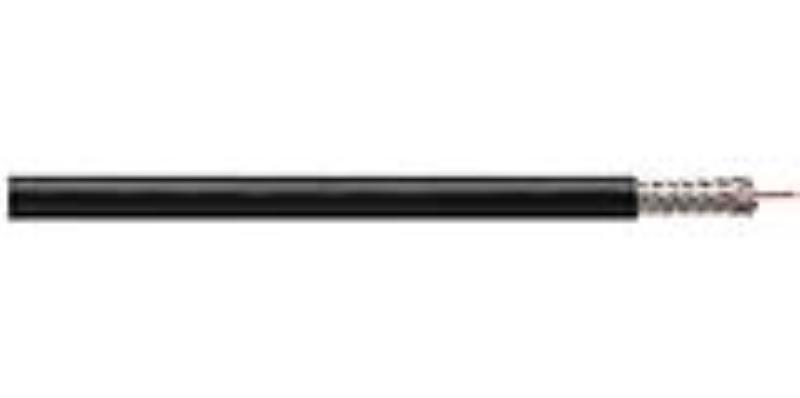

M17/30-Rg062
988405
Coleman Cable - CCI
(click image to enlarge)
Quick Overview
Features& Application:-
Manufactured in accordance with, tested & certified to individual Slant Sheets ie:(M17/028-RG058)
RoHS & REACH compliant insulating compounds
Test Reports with manufacturing lot for each & every cable
Certificate of Compliance with MIL-DTL-17
Made in the USA
High frequency RF antenna for ground support equipment
Radar systems & flight guidance equipment
Secure & cryptic aerospace communications
Interested in this item or want more information?
Call Mon. through Fri. 6:30 AM - 5:00 PM PST
Phone: (866) 931-8027
Email:
Sales@CFCdelivers.com
Can't find what you want? Give us a call and we can help you find it.
Details
Construction Parameters
OD (in)*
Conductor
22 AWG 0.0253” solid Copper clad steel
0.025
Dielectric
Semi-Solid Polyethylene color natural (includes 0.035” Diameter Monofilament thread (Air space)
0.146
Shielding
94% Bare Copper Braid
0.172
Jacket
PVC (Non-Contaminating Vinyl Type IIA)
0.242
Electrical Properties
VALUE*
Conductor Resistance (Max./100 ft)
4.4
Shield Resistance (ohms/1000 ft
2.9
Impedance (ohms)
93
Capacitance (Max. pF/ft)
14.5
Velocity of Propagation (%)
84
Attenuation (Max. db/100 ft)
100 MHz
2.7
200 MHz
41
400 MHz
8.0
1000MHz
13.0
Additional Information
Manufacturer: Coleman Cable - CCI
For More Information on the M17/30-Rg062,
[Click Here]
to Link to Manufacturer Web Site
