Coleman Cables Rg59 20Bc 95 Bc Direct Burial (Flooded) Non-Ul

192115

Coleman Cable - CCI

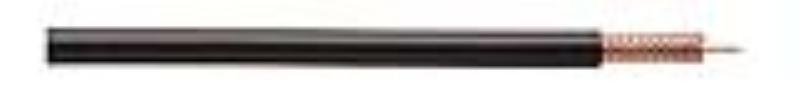

Rg59 20Bc 95 Bc Direct Burial (Flooded) Non-Ul
(click image to enlarge)
Quick Overview
    Features & Applications:-
  • RG59 Type
  • PE Dielectric
  • PVC Jacket
    • Interested in this item or want more information?
    Call Mon. through Fri. 6:30 AM - 5:00 PM PST
    Phone: (866) 931-8027
    Email: Sales@CFCdelivers.com

    Can't find what you want? Give us a call and we can help you find it.
    Details

    Construction Parameters

    Electrical Properties

    Wall (in)* OD (in)*
    Conductors 20 AWG (1/.032) Solid Bare Copper - 0.032
    Dielectric Foam Polyethylene color natural0.0570.146
    Shielding95% Solid Bare Copper Braid -0.174
    WaterblockFlooding Compound --
    JacketPVC0.0340.242
    VALUE*
    Impedance (ohms)- 75
    Capacitance (Max. pF/ft) - 17
    Velocity of Propagation (%) - 78
    Attenuation (Max. db/100 ft) 50 MHz1.8
    100 MHz2.5
    200 MHz3.4
    400 MHz5.4
    700 MHz6.9
    1000 MHz8.2
    Additional Information
    Manufacturer: Coleman Cable - CCI
    For More Information on the Coleman Cables Rg59 20Bc 95 Bc Direct Burial (Flooded) Non-Ul, [Click Here] to Link to Manufacturer Web Site
