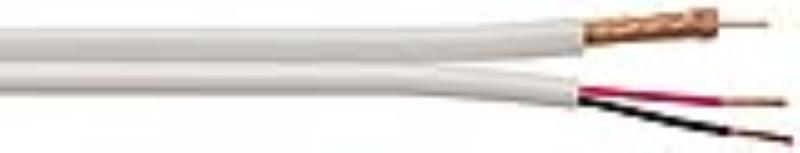

Coleman Cables Rg59 20Bc 95 Bc+18/2 Str Bc Plenum Round

99979

Coleman Cable - CCI

(click image to enlarge)
Quick Overview
    Features & Application:-
    • Bare Copper Center Conductor
    • 95% Bare Copper Braid
    • FEP Dielectric
    • PVC Low Smoke Plenum Jacket
    • CCTV
Interested in this item or want more information?
Call Mon. through Fri. 6:30 AM - 5:00 PM PST
Phone: (866) 931-8027
Email: Sales@CFCdelivers.com

Can't find what you want? Give us a call and we can help you find it.
Details

Construction Parameters

Part 1

Electrical Properties:-

OD (in)*
Conductor 20 AWG (1/.032) Solid Bare Copper 0.032
Dielectric Foam FEP 0.140
Shielding 95% Copper Braid 0.162
Jacket PVC 0.194
Part 2
Conductor 18 AWG (7/26) Stranded Bare Copper 0.045
Dielectric PVC 0.069
Twist 2 Conductors (1 Black & 1 Red) twisted as Pair 0.138
Final
Jacket Part 1 and Part 2 Jacketed with PVC under one jacket. Appx. Appx.0.226x0.364
VALUE*
Impedance (ohms)- 75
Capacitance pf/ft- 17.8
Velocity of Propagation (%)- 82
Attenuation (Max db/100 ft) 50 MHz 2.0
100 MHz 2.7
200 MHz 3.7
400 MHz 6.3
1000 MHz 10.1
Additional Information
Manufacturer: Coleman Cable - CCI
For More Information on the Coleman Cables Rg59 20Bc 95 Bc+18/2 Str Bc Plenum Round, [Click Here] to Link to Manufacturer Web Site
