Details

Construction Parameters:-

Electrical Properties:-


Part 1
Conductor	18 AWG (1/.040) Solid Copper Clad Steel	0.040
Dielectric	Foam Polyethylene	0.180
Shielding 1 & 2	100% Bonded Aluminum/Polyester/Aluminum Tape plus 40% Aluminum Braid	0.216
Shielding 3 & 4	100% Aluminum/Polyester/Aluminum Tape plus 60% Aluminum Braid	0.249
Part 2
Conductor	24 AWG (1/.020) Solid Bare Copper	0.020
Dielectric	Polyethylene	0.038
Assembly	"Two Insulated conductors are twisted into pairs and four pairs are cabled into a Core core."
Final
Jacket	"Part 1 and Part 2 are jacketed in a two legged construction with a web between each leg"	0.290 x 0.575


		VALUE*
Impedance (ohms)		75
Capacitance pf/ft		17
Velocity of Propagation (%)		81
Attenuation (Max db/100 ft)	10 MHz	1.85
	50 MHz	1.0
	100 MHz	1.3
	200 MHz	2.05
	400 MHz	3.05
	700 MHz	5.95
	1000 MHz	7.55
	1200 MHz	8.9
	1450 MHz	10.1
	1500 MHz	10.3
	2000 MHz	11.3
	2500 MHz	12.2
	3000 MHz	13.48

Additional Information

Manufacturer: Coleman Cable - CCI

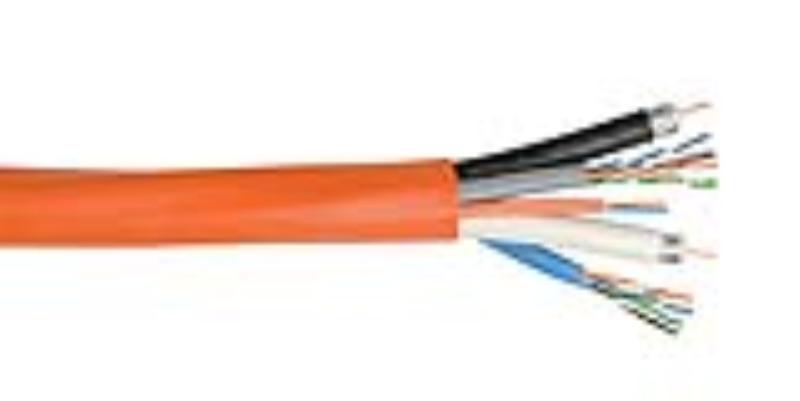

For More Information on the (2)Rg6 Quad + (2)Cat 5E + (2)Fiber, [Click Here] to Link to Manufacturer Web Site
