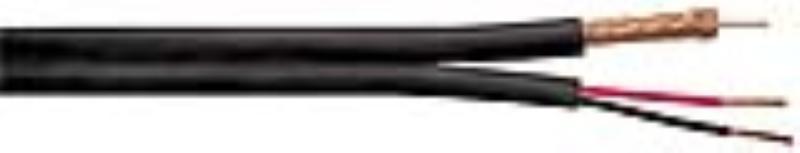

Coleman Cables Rg59 20Bc 95 Bc &18/2 Str Bc Round

92094

Coleman Cable - CCI

Rg59 20Bc 95 Bc &18/2 Str Bc Round
(click image to enlarge)
Quick Overview
    Features & Applications :-
    • Bare Copper Center Conductor
    • 95% Bare Copper Braid
    • PE Dielectric
    • CCTV
Interested in this item or want more information?
Call Mon. through Fri. 6:30 AM - 5:00 PM PST
Phone: (866) 931-8027
Email: Sales@CFCdelivers.com

Can't find what you want? Give us a call and we can help you find it.
Details

Construction Parameters

Electrical Properties

1st part
OD (in)*
Conductors 20 AWG (1/.032) Solid Bare Copper0.032
Dielectric Foam Polyethylene color natural 0.144
Shielding 95% Copper Braid0.171
Jacket PVC 0.045
2nd part
Conductor 18 AWG (16/30) Solid Bare Copper0.045
Dielectric PVC 0.144
Jacket One Part 1 and 2 Part 2’s are jacket under one jacket.0.340
Coax VALUE*
Impedance (ohms)- 75
Capacitance (pF/ft) - 17
Velocity of Propagation (%) - 78
Attenuation (Max. db/100 ft) 50 MHz 1.7
216 MHz 3.6
240MHz 3.8
260 MHz 4.0
270 MHz 4.0
300 MHz 4.3
Additional Information
Manufacturer: Coleman Cable - CCI
For More Information on the Coleman Cables Rg59 20Bc 95 Bc &18/2 Str Bc Round, [Click Here] to Link to Manufacturer Web Site
