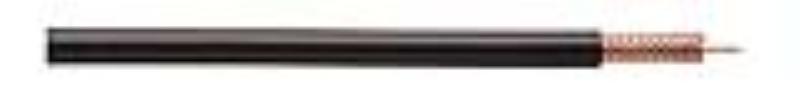

Coleman Cables Rg6 18Bc 95 Bc

92045

Coleman Cable - CCI

(click image to enlarge)
Quick Overview
    Features & Applications:-
    • RG6 Type
    • PE Dielectric
    • PVC Jacket
    • CCTV
Interested in this item or want more information?
Call Mon. through Fri. 6:30 AM - 5:00 PM PST
Phone: (866) 931-8027
Email: Sales@CFCdelivers.com

Can't find what you want? Give us a call and we can help you find it.
Details

Construction Parameters

Electrical Properties:-

Wall (in)* OD (in)*
Conductor 18 AWG (1/.040) Solid Bare Copper - 0.040
Dielectric Foam Polyethylene color natural 0.070 0.175
Shielding 95% Bare Copper Braid - 0.197
Jacket PVC 0.037 0.270
VALUE*
Impedance(ohms) - 75
Capacitance (pF/ft)- 17
Velocity of Propagation (%)- 78
Attenuation** (db/100 ft) 50 MHz 1.5
100 MHz 2.1
200 MHz 3.1
400 MHz 4.5
700 MHz 5.9
1000 MHz 7.3
Additional Information
Manufacturer: Coleman Cable - CCI
For More Information on the Coleman Cables Rg6 18Bc 95 Bc, [Click Here] to Link to Manufacturer Web Site
