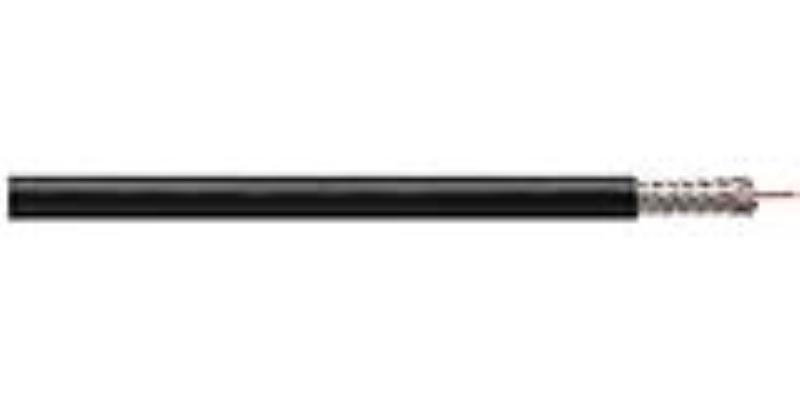

Coleman Cables Rg6 18Ccs Value Coax

92008

Coleman Cable - CCI

(click image to enlarge)
Quick Overview
    Features & Applications:-
    • RG6 Type
    • Dual or Quad Shield
    • PE Dielectric
    • PVC Jacket
    • 3.0 GHZ
    • CATV
Interested in this item or want more information?
Call Mon. through Fri. 6:30 AM - 5:00 PM PST
Phone: (866) 931-8027
Email: Sales@CFCdelivers.com

Can't find what you want? Give us a call and we can help you find it.
Details

Construction Parameters

Electrical Properties:-

Wall (in)* OD (in)*
Conductor 18 AWG (1/.040) Copper Clad Steel - 0.040
Dielectric Foam Polyethylene color natural 0.070 0.180
Shielding Polyester/Aluminum Fusible Tape plus 60% Aluminum Braid - 0.216
Jacket PVC 0.032 0.269
VALUE*
Impedance (ohms) - 75
Capacitance (pF/ft) - 17
Velocity of Propagation (%) - 81
Attenuation** (db/100 ft) 10 MHz 0.8
50 MHz 1.4
100 MHz 1.9
200 MHz 2.9
400 MHz 3.9
700 MHz 5.4
1000 MHz 6.6
1200 MHz 8.9
1450 MHz 10.1
1800 MHz 10.9
2000 MHz 11.3
2500 MHz 12.2
3000 MHz 13.5
Additional Information
Manufacturer: Coleman Cable - CCI
For More Information on the Coleman Cables Rg6 18Ccs Value Coax, [Click Here] to Link to Manufacturer Web Site
