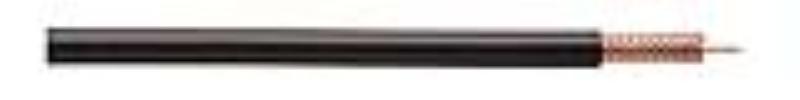

Coleman Cables RG62A 22CCS 95 BC

92002

Coleman Cable - CCI

RG62A 22CCS 95 BC
(click image to enlarge)
Quick Overview
    Features & Applications:-
  • RG62 Type
  • PE Dielectric
  • PVC Jacket
    • Interested in this item or want more information?
    Call Mon. through Fri. 6:30 AM - 5:00 PM PST
    Phone: (866) 931-8027
    Email: Sales@CFCdelivers.com

    Can't find what you want? Give us a call and we can help you find it.
    Details

    Construction Parameters

    Electrical Properties

    Wall (in)* OD (in)*
    Conductors 22 AWG (1/.025) Solid Copper Clad Steel (40% Conductivity) - 0.025
    Assembly Solid 0.035 Polyethylene Monofilament wrapped in a helical application around the conductor 0.0250.095
    InsulationA tube of solid polyethylene applied over the conductor and Monofilament -0.171
    Shielding95% Bare Copper Braid -0.174
    JacketPVC0.0340.242
    VALUE*
    Conductor Resistance (ohms/kft)- 15
    Impedance (ohms)- 75
    Capacitance (Max. pF/ft) - 20.5
    Velocity of Propagation (%) - 66
    Attenuation (Max. db/100 ft) 50 MHz1.9
    100 MHz2.7
    200 MHz3.8
    400 MHz5.4
    900 MHz8.3
    Additional Information
    Manufacturer: Coleman Cable - CCI
    For More Information on the Coleman Cables RG62A 22CCS 95 BC, [Click Here] to Link to Manufacturer Web Site
