Labor and cost savings

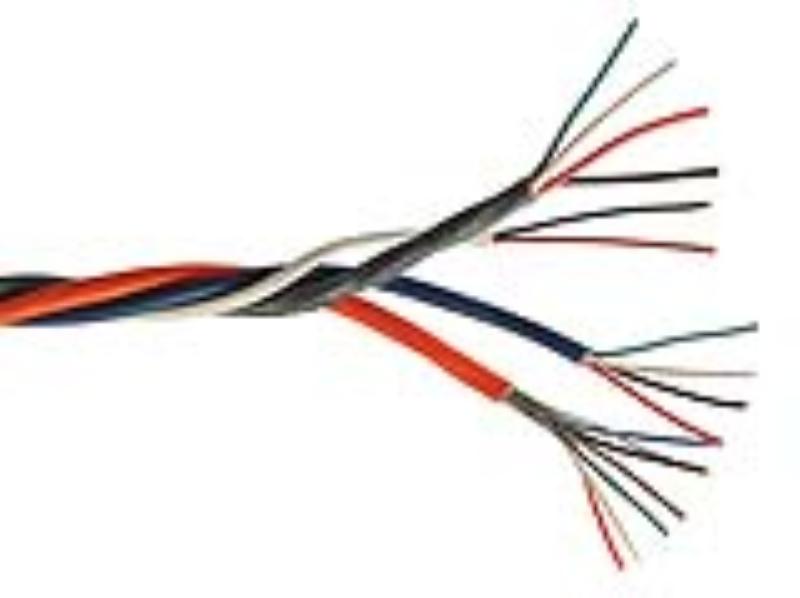

Overall jacketed or unjacketed
Color-coded for easy identification and individually jacketed for a quick, error-free installation
Lock power (18/4)
Door contact (22/2)
Request to exit (22/4)
Card readers (22/6 shielded)

Interested in this item or want more information?
Call Mon. through Fri. 6:30 AM - 5:00 PM PST
Phone: (866) 931-8027
Email: Sales@CFCdelivers.com

Can't find what you want? Give us a call and we can help you find it.

Details

Construction Parameters:


PART NUMBER	56100
DESCRIPTION	PN 53102, PN 53121, PN 67066 AND PN 51145 CMR/CL2R/FPLR CABLED
APPROVALS	ETL Listed to UL Standard 13 & 444, CSA C22.2 No. 214


Coleman Cable Similar P/N	53102	53121	67066	51145
AWG / Quantity	22/2	22/4	22/6 Shielded	18/4
Cable Dia.	0.110	0.127"	0.172"	0.166"
Cabling lay length	4.00" Nom.
Overall Cable Diameter	0.348" Nom
Temperature Rating	60°C
Voltage Rating	300 V RMS Max

Additional Information

Manufacturer: Coleman Cable - CCI

For More Information on the Access Control 4-Comp Unjacketed Cmr/Cl2R, [Click Here] to Link to Manufacturer Web Site
