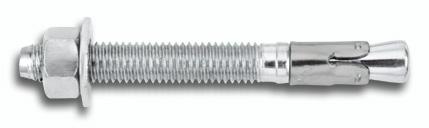

Power-Stud+® SD2

7413SD

Anchors Powers DeWalt

Wedge Expansion Anchor For Use With Strength Design
(click image to enlarge)
Quick Overview

    The Power-Stud+ SD2 anchor is a fully threaded, torque-controlled, wedge expansion anchor which is designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal-weight concrete, structural sand-lightweight and concrete concrete over metal deck. The anchor is manufactured with a zinc plated carbon steel body and stainless steel expansion clip for premium performance.

  • Consistent performance in high and low strength concrete
  • Nominal drill bit size is the same as the anchor diameter
  • Anchor can be installed through standard fixture holes
  • Length ID code and identifying marking stamped on head of each anchor
  • Anchor design allows for follow-up expansion after setting under tensile loading
Interested in this item or want more information?
Call Mon. through Fri. 6:30 AM - 5:00 PM PST
Phone: (866) 931-8027
Email: Sales@CFCdelivers.com

Can't find what you want? Give us a call and we can help you find it.
Details

THREAD VERSION

  • UNC threaded stud
  • ANCHOR MATERIALS

  • Zinc plated carbon steel body with stainless steel expansion clip, zinc plated carbon steel nut and washer
  • ANCHOR SIZE RANGE (TYP.)

  • 3/8” diameter through 3/4” diameter
  • SUITABLE BASE MATERIALS

  • Normal-weight concrete
  • Structural sand-lightweight concrete
  • Concrete over steel deck
  • Grout-filled concrete masonry (CMU)
  • Additional Information
    Manufacturer: Anchors Powers DeWalt
    For More Information on the Power-Stud+® SD2, [Click Here] to Link to Manufacturer Web Site
