Short Drop-In Internally Threaded Expansion Shell Anchor

Simpson Strong-Tie

(click image to enlarge)
SKU / Product InfoQuantity
Rod Size (in.): 3/8
Rod Size (in.): 1/2
Quick Overview

    Drop-in anchors are internally threaded, deformation-controlled expansion anchors with a pre-assembled expander plug, suitable for flush mounting in solid base materials.

  • Short length enables shallow embedment that helps avoid drilling into rebar or pre-stressed or post-tensioned cables.
  • Lipped edge enables consistent embedment that contributes to uniform rod lengths and installation into deep and bottomless holes
  • Lipped edge eliminates the need for precisely drilled hole depths
  • Each box includes a setting tool compatible with the anchor to ensure consistent installation
  • ***A ½" diameter Short Drop-In anchor complements the existing 3/8" diameter offering for solid and hollow concrete applications.

  • Material: Carbon steel
    Finish: Zinc plated

    Codes: Factory Mutual 3017082 & Underwriters Laboratories File Ex3605.
Interested in this item or want more information?
Call Mon. through Fri. 6:30 AM - 5:00 PM PST
Phone: (866) 931-8027
Email: Sales@CFCdelivers.com

Can't find what you want? Give us a call and we can help you find it.

Drop-In Anchor Material Specifications

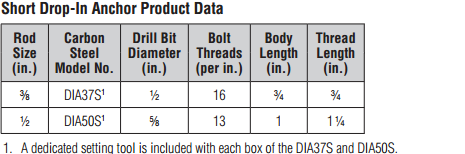

Short Drop-In Anchor Product Data
Additional Information
Manufacturer: Simpson Strong-Tie
For More Information on the Short Drop-In Internally Threaded Expansion Shell Anchor, [Click Here] to Link to Manufacturer Web Site
