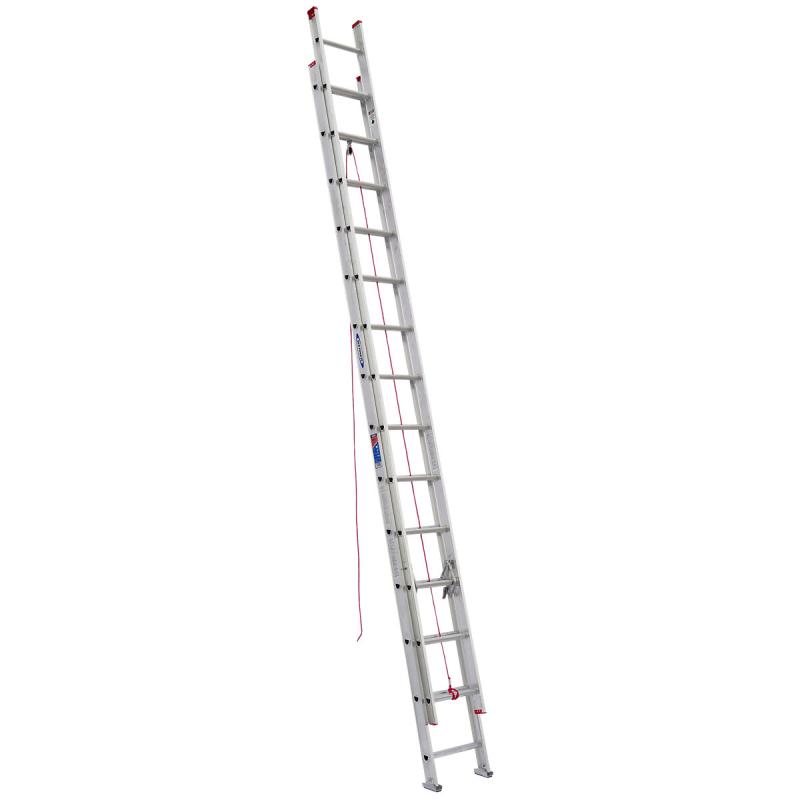

The D1100-2 series aluminum extension ladders are lightweight yet have a duty rating of 200 pounds. The Traction-Tred D rungs are slip resistant. Spring-loaded locks operate smoothly for easy operation. Pivoting shoes with slip-resistant foot pads. Mar-resistant end caps help protect the surface ladder is leaning against. Exclusive ALFLO rung joint means TWIST-PROOF performance every time.

(click image to enlarge)

Quick Overview

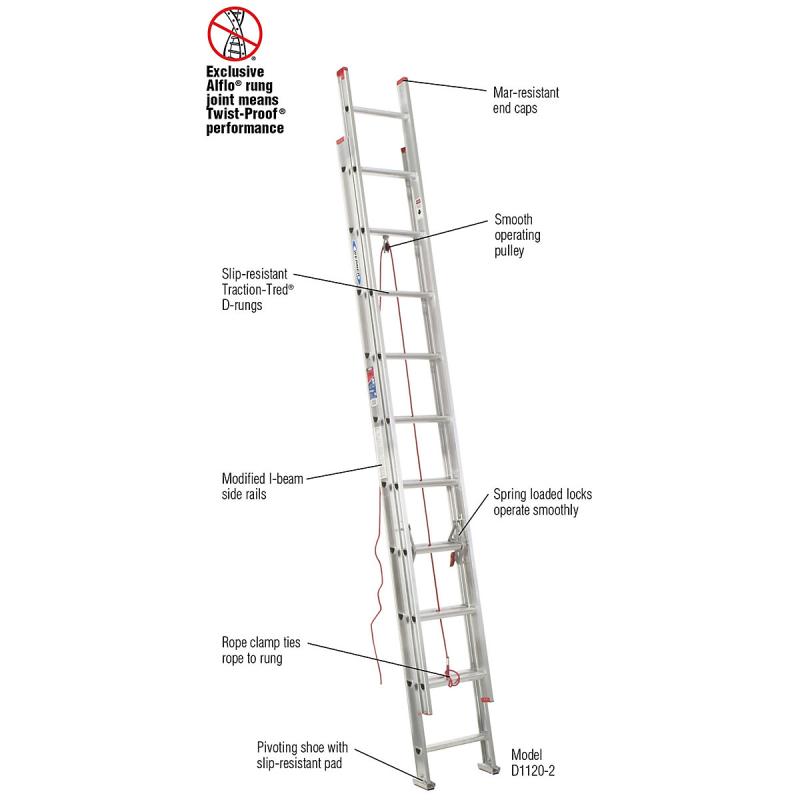

Features include:

Exclusive ALFLO rung joint means TWIST-PROOF performance
1-1/2" Slip-resistant Traction-Tred D-rungs
Durable extruded rung locks are spring loaded to operate smoothly
Mar-resistant end caps
Smooth operating pulley with polypropylene rope
Modified I-beam side rails to optimize strength and weight
Pivoting shoe with slip-resistant pad
Pivoting shoe with slip-resistant pad

Interested in this item or want more information?
Call Mon. through Fri. 6:30 AM - 5:00 PM PST
Phone: (866) 931-8027
Email: Sales@CFCdelivers.com

Can't find what you want? Give us a call and we can help you find it.

Details

Dimensions

Rails Dimension: 3"

Flange Dimension: 15/16"

Rung Dimension: 1-1/2"

Fly Width: 14-1/8"

Base Width: 16" outside rails

Specifications

Size: 28'

Reach Height: 27'

Max Working Length: 25'

Load Capacity: 200 lbs.

Type: Type III Duty Rating

Performance Rating: 1 Star

Material: Aluminum

Rung Type: D

Foot Material: Slip-resistant pad

Number of Sections: 2

Certifications: ANSI A14.2 (2007)

Approx. Cu. Ft. Per Unit: 9

Approx. Shipping Wt. Lbs.: 38.5

Additional D1100-2 Series Models:

Model No.	Size	Reach Height	Max Working Length	Approx. Cu. Ft. Per Unit	Approx. Shipping Wt. Lbs.
D1116-2	16'	15'	13'	4.9	18.5
D1120-2	20'	19'	17'	6.2	23
D1124-2	24'	23'	21'	7.4	30
D1128-2	28'	27'	25'	9	38.5

Additional Information

Manufacturer: Werner Co.
