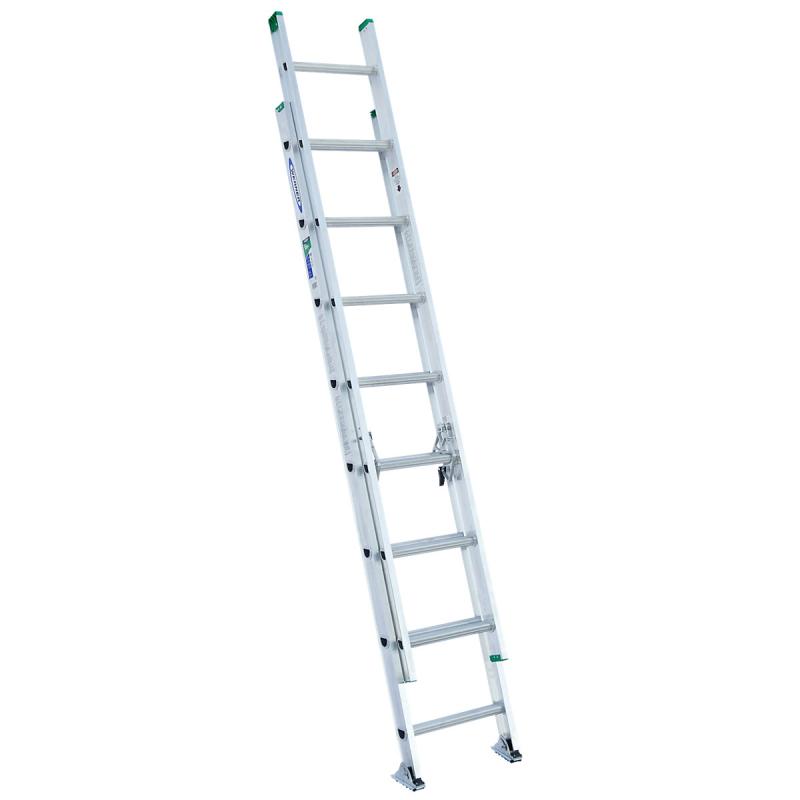

The D1200-2 series aluminum extension ladders have a duty rating of 225 pounds and interlocking side rails. The Traction-Tred D rungs are slip resistant. Spring-loaded locks operate smoothly for easy operation. Shoes rest flat or are held in spur position with Shu-Lok feature. Mar-resistant end caps help protect the surface ladder is leaning against. Exclusive ALFLO rung joint means TWIST-PROOF performance every time.

(click image to enlarge)

Quick Overview

Features include:

Exclusive ALFLO rung joint means TWIST-PROOF performance
1-3/4" Slip-resistant Traction-Tred D-rungs
Durable extruded rung locks are spring loaded to operate smoothly
Mar-resistant end caps
Heavy duty modified I-beam side rails
Durable shoe rests flat on slip resistent pad or is held in spur position with Shu-Lok feature

Interested in this item or want more information?
Call Mon. through Fri. 6:30 AM - 5:00 PM PST
Phone: (866) 931-8027
Email: Sales@CFCdelivers.com

Can't find what you want? Give us a call and we can help you find it.

Details

Dimensions

Rails Dimension: 3"

Flange Dimension: 1"

Rung Dimension: 1-3/4"

Fly Width: 15-1/4"

Base Width: 17-3/8" outside rails

Specifications

Size: 16'

Reach Height: 15'

Max Working Length: 13'

Load Capacity: 225 lbs.

Type: Type II Duty Rating

Performance Rating: 2 Star

Material: Aluminum

Rung Type: D

Foot Material: Slip-resistant pad

Number of Sections: 2

Certifications: ANSI A14.2 (2007); OSHA

Approx. Cu. Ft. Per Unit: 5.8

Approx. Shipping Wt. Lbs.: 22

Additional D1200-2 Series Models:

Model No.	Size	Reach Height	Max Working Length	Approx. Cu. Ft. Per Unit	Approx. Shipping Wt. Lbs.
D1216-2	16'	15'	13'	5.8	22
D1220-2	20'	19'	17'	7.2	27
D1224-2	24'	23'	21'	8.6	33.5
D1228-2	28'	27'	25'	10	43
D1232-2	32'	31'	29'	11.5	54
D1236-2	36'	34'	32'	13	62.5
D1240-2	40'	37'	35'	14.4	73.5

Additional Information

Manufacturer: Werner Co.
