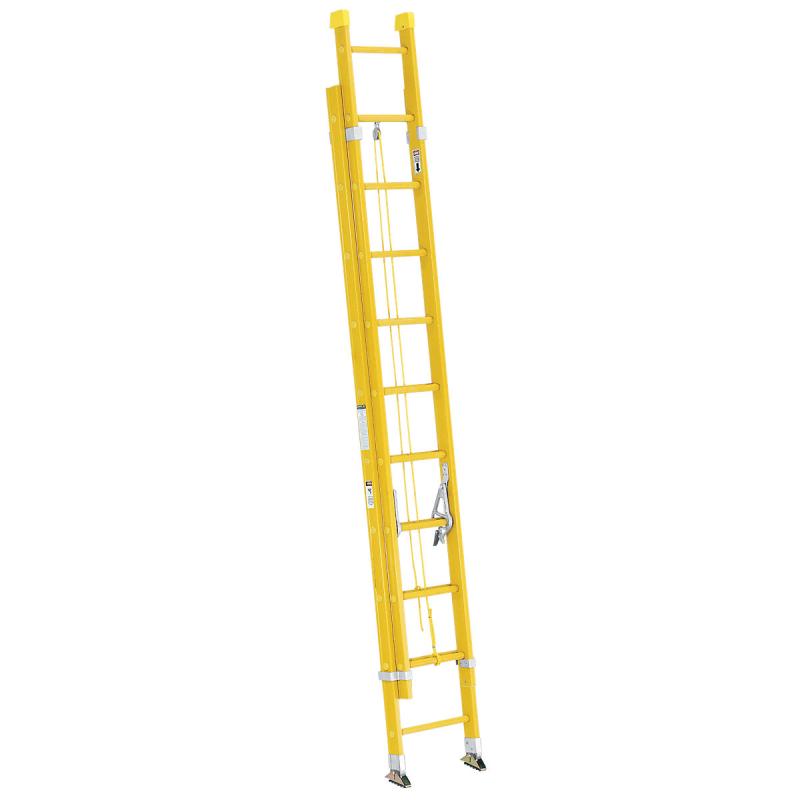

32' Type IA All Fiberglass Round Rung Extension Ladder

9532-2

Werner Co.

The 9500-2 All-Fiberglass Extension ladders are ideal in highly-corrosive environments. Where most fiberglass extension ladders have aluminum rungs, the 5900-2 series has unique box-beam rails that are connected with a fiberglass pultruded rung. Nylon plugs interlock the entire rung-to-rail connections. Two heavy duty guide brackets are secured to the top of the base section for ease of operation. Thick rubber treads and spur plates provide a solid foundation at the foot. These ladders bear a duty rating of 300 pounds.

(click image to enlarge)
Quick Overview

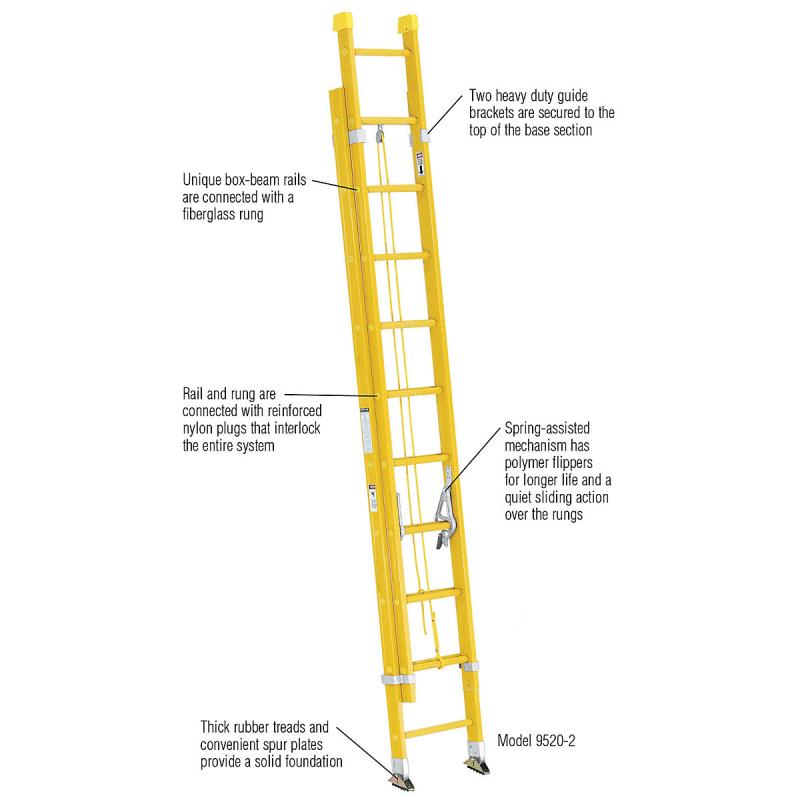

    Features include:

  • All Fiberglass rungs and rails ideal for harsh environments
  • Unique box-beam rails are connected with a fiberglass rung
  • Rail and rung are connected with reinforced nylon plugs that interlock the entire system
  • Thick rubber treads and convenient spur plates provide a solid foundation
  • Spring-assisted mechanism has polymer flippers for longer life and a quiet sliding action over the rungs
  • Two heavy duty guide brackets are secured to the top of the base section
  • Protective molded endcaps mounted at the top of the ladder
Interested in this item or want more information?
Call Mon. through Fri. 6:30 AM - 5:00 PM PST
Phone: (866) 931-8027
Email: Sales@CFCdelivers.com

Can't find what you want? Give us a call and we can help you find it.
Details

Dimensions

  • Rails Dimension: 3-1/4"
  • Flange Dimension: 1-3/16"
  • Rung Dimension: 1-1/4"
  • Fly Width: 15-1/2"
  • Base Width: 19" outside shoes

  • Specifications

  • Size: 32'
  • Reach Height: 31'
  • Max Working Length: 29'
  • Load Capacity: 300 lbs.
  • Type: Type IA Duty Rating
  • Performance Rating: 4 Star
  • Material: Fiberglass
  • Rung Type: Round
  • Foot Material: Slip-resistant pad
  • Number of Sections: 2
  • Certifications: ANSI A14.5 (2007); OSHA
  • Approx. Cu. Ft. Per Unit: 16
  • Approx. Shipping Wt. Lbs.: 72

  • Additional 9500-2 Series Models:
    Model No.SizeReach Height Max Working Length Approx. Cu. Ft. Per Unit Approx. Shipping Wt. Lbs.
    9516-216'16'13'8.341
    9520-220'19'17'10.249
    9524-224'23'21'12.256
    9528-228'27'25'14.164
    9532-232'31'29'1672
    Additional Information
    Manufacturer: Werner Co.
