The 3200 stage platforms offer a 750 pound duty rating and allows for 3 people on one plank. The TWIST-PROOF design is ideal for ladder jack applications, swing stages or catwalks. Each stage is 28" wide.

(click image to enlarge)

Quick Overview

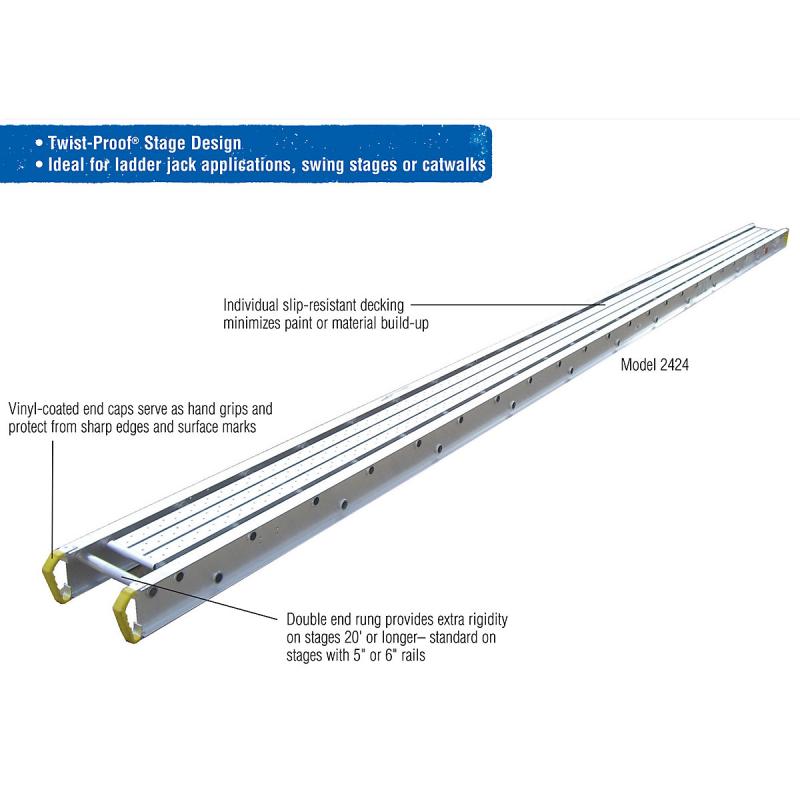

Features include:

Individual slip-resistant decking minimizes paint or material build-up
Vinyl-coated end caps serve as hand grips and protect from sharp edges and surface marks
Double end rung provides extra rigidity on stages 20' or longer
3-Person - 750 lbs. Rated

Interested in this item or want more information?
Call Mon. through Fri. 6:30 AM - 5:00 PM PST
Phone: (866) 931-8027
Email: Sales@CFCdelivers.com

Can't find what you want? Give us a call and we can help you find it.

Details

Dimensions

Side Rail Depth: 6"

Rail Duty: Heavy Duty

Side Rail Flange: 2"

Specifications

Side Rail Length: 28'

Platform Width: 28"

Load Capacity: 750 lbs.

Certifications: ANSI A10.8 (2001); OSHA

Approx. Cu. Ft. Per Unit: 32.62

Approx. Shipping Wt. Lbs.: 220

Additional 3200 Series Models:

Model No.	Side Rail Length	Approx. Cu. Ft. Per Unit	Approx. Shipping Wt. Lbs.
3208	8'	6.15	48
3212	12'	9.23	71
3216	16'	15.66	103
3220	20'	19.57	128
3224	24'	27.96	161
3228	28'	32.62	220
3232	32'	37.28	251
3236	36'	41.94	344
3239	39'	45.44	388

Additional Information

Manufacturer: Werner Co.
