14' Type IAA Fiberglass Combination Ladder Write the first review

7807

Werner Co.

The 7800 combination step and extension ladders are versatile and easy to transport yet carry a duty rating of 375 pounds.

(click image to enlarge)
Quick Overview

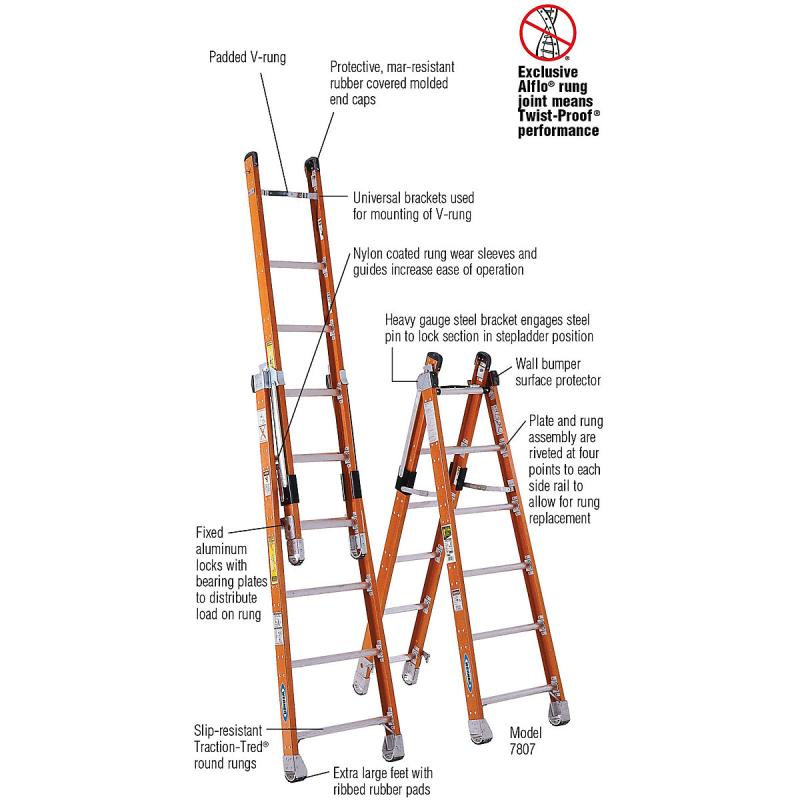

    Features include:

  • Combination ladder design can be quickly converted from twin stepladder position to straight ladder position
  • Exclusive ALFLO Rung plate joints for TWIST-PROOF Performance
  • Protective, mar-resistant rubber covered molded end caps, wall bumpers & padded V-Rung
  • Slip-Resistant TRACTION-TRED Round Rungs
  • Fixed aluminum locks with bearing plates to distribute load on rung
  • Nylon coated rung wear sleeves and guides increase ease of operation
  • Heavy gauge steel bracket engages steel pin to lock section in stepladder position
  • Extra Large Feet with Ribbed Rubber Pads
  • Plate and rung assembly are riveted at four points to each side rail to allow for rung replacement
  • Design for one or two-person jobs
  • Maximum load per side, including person and materials, shall not exceed duty rating of ladder
Interested in this item or want more information?
Call Mon. through Fri. 6:30 AM - 5:00 PM PST
Phone: (866) 931-8027
Email: Sales@CFCdelivers.com

Can't find what you want? Give us a call and we can help you find it.
Details

The 7800 combination step and extension ladders are versatile and easy to transport yet carry a duty rating of 375 pounds. As an extension ladder, the top rung is a padded V-rung for use against a tree or a pole. The protective rubber covered end caps are mar-resistant. Nylon-coated rung wear sleeves and guides increase the ease of raising and lowering the extension. Fixed aluminum locks with bearing plates distribute the load onto the rung where it should be. The TRACTION-TRED round rungs are slip resistant. In the stepladder position, this ladder can be used by one or two people. The 375 pound duty rating applies to each side of the ladder making it ideal for the worksite


Specifications

  • Size: 14'
  • Reach Height: 13'
  • Max Working Length: 11'6"
  • Load Capacity: 375 lbs.
  • Type: Type IAA Duty Rating
  • Performance Rating: 5 Star
  • Material: Fiberglass
  • Rung Type: Round
  • Foot Material: Slip-resistant pad
  • Number of Sections: 2
  • Certifications: ANSI A14.5 (2007); OSHA
  • Approx. Cu. Ft. Per Unit: 10.3
  • Approx. Shipping Wt. Lbs.: 37

  • Dimensions

  • Rails Dimension: 3-1/8"
  • Flange Dimension: 1-3/16"
  • Rung Dimension: 1-1/4"
  • Fly Width: 14-1/2"
  • Base Width: 24-1/4"

  • Additional 7800 Series Models:
    Model No.SizeReach Height Max Working Length Approx. Cu. Ft. Per Unit Approx. Shipping Wt. Lbs.
    780612'12'9'6"8.633.5
    780714'13'11'6"10.337
    780816'15'13'6"12.140.5
    Additional Information
    Manufacturer: Werner Co.
