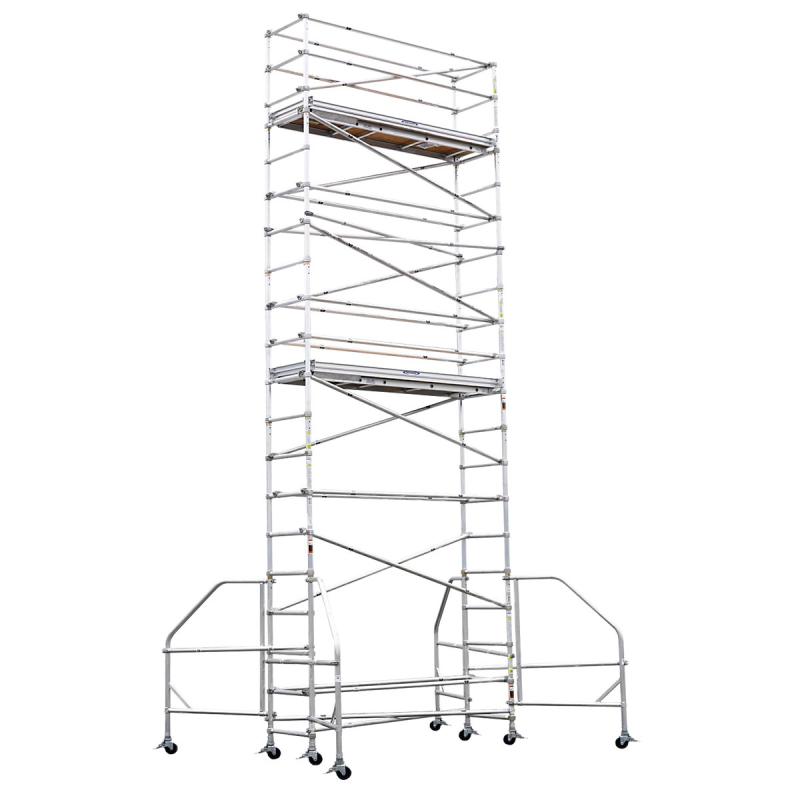

The 4100-23 series aluminum scaffold towers offer 6', 8', or 10' length platforms that are 29" wide, and 23' maximum platform height. Load capacity is 25 lbs. per square foot or 500 lbs. maximum per deck and scaffold. Additional Werner scaffold sections and components can be added to the tower for maximum flexibility.

(click image to enlarge)

Quick Overview

Feature:
Simplified ordering--order one model number and receive everything needed to build a complete tower
Takes the guesswork out of what is required to meet code
Ideal for schools, hospitals and building maintenance
Includes guard rails, toeboards, and planks with access door that allows end users to climb from inside. 23' Towers include additional fixed board (no access door)
Outriggers included

Interested in this item or want more information?
Call Mon. through Fri. 6:30 AM - 5:00 PM PST
Phone: (866) 931-8027
Email: Sales@CFCdelivers.com

Can't find what you want? Give us a call and we can help you find it.

Details

Specification:

Feature:Size/Details

Tower Style:Narrow Span

Load Capacity/sq. ft.:25 lbs.

Load Capacity/Deck:500 lbs.

Load Capacity/Scaffold:500 lbs.

Material:Aluminum

Certifications:ANSI A10.8 (2001)

Approx. Cu. Ft. Per Unit:256.43

Approx. Shipping Wt. Lbs.:514.5

Dimensions:

Feature:Size

Platform Height:23'

Total Tower Height:26' 4"

Platform Width:2'5"

Total Width:9' 6"

Platform Length:10'

Total Length:13' 6"

Additional 4100-23 Series Models

Model No.	Approx.Cu.Ft.Per Unit	Approx.Shipplng wt.Lbs
4101-23	175.39	451.0
4102-23	219.24	489.0
4103-23	256.43	514.5

Additional Information

Manufacturer: Werner Co.
