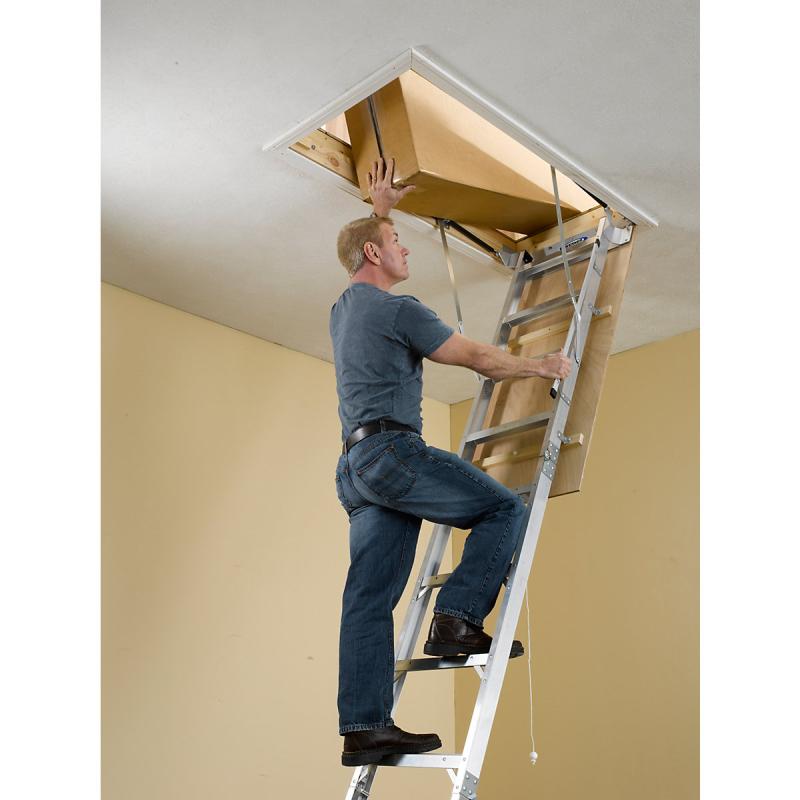

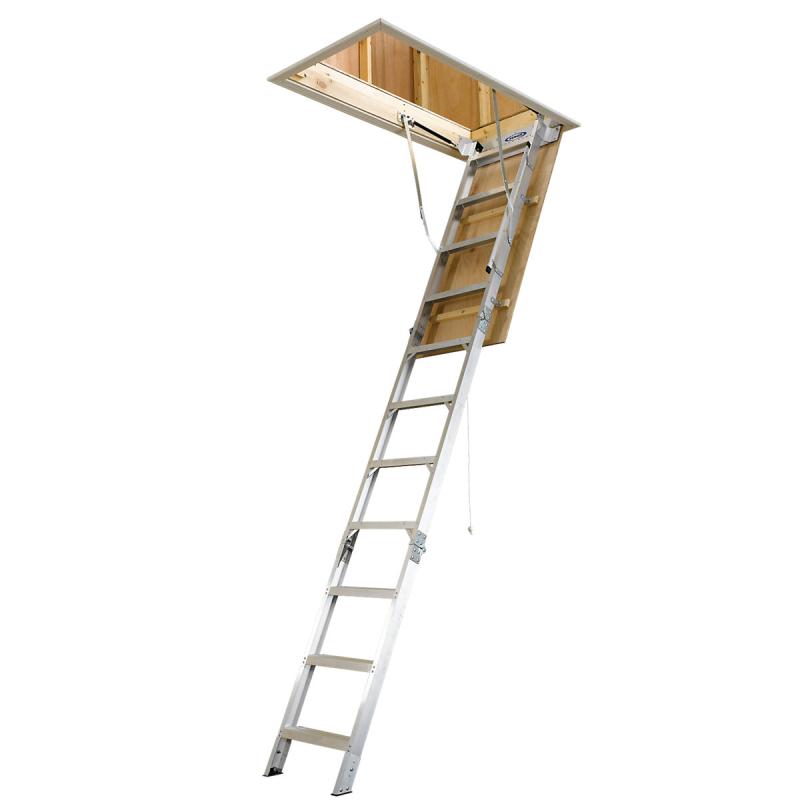

The AH Series Universal attic ladders are lightweight, yet carry a duty rating of 375 pounds. The strut design eliminates springs and allows for a wide access opening. Easy to open and close. Wide steps are slip resistant and the feet are non-marring. Available for standard or extra-wide openings.

(click image to enlarge)

Quick Overview

Features:

Extra-wide access opening
Easy to open, smooth closing
Slip-resistant extra wide steps
Non-marring feet
Fits all ceiling heights from 8' to 10'

Interested in this item or want more information?
Call Mon. through Fri. 6:30 AM - 5:00 PM PST
Phone: (866) 931-8027
Email: Sales@CFCdelivers.com

Can't find what you want? Give us a call and we can help you find it.

Details

Performance Overview

Size	Load Capacity	Material
8'-10'	375 lbs	Aluminum

Specifications

Size: 8'-10'
Floor to Ceiling Height Range: 7'8" to 10'3"
Rough Opening Width x Length: 25" x 54"
Load Capacity: 375 lbs
Ladder Width: 17-1/8"
Landing Space Range: 4' - 5' 3"
Swing Clearance: 5' 10"
Foot Material: Aluminum with rubber bottom
Locking Device: Gas Strut
Opening Device: Rope
Door Material: Plywood
Frame Material: Pine
Full Width Door hinge: Yes
Metal-to-Metal Rail hinge: Yes
Requires Cutting Foot Angle: No
Number of People for Installation: 2
Certifications: ANSI A14.9 (2010)
Approx. Cu. Ft. Per Unit: 7.57
Approx. Shipping Wt. Lbs.: 52

Dimensions

Rail Size: 1-1/2" x 2-3/8"
Flange: 1-1/2"
Step Length: 15-1/16"
Step Width: 3"

Additional AH Series Models

Model No.	Size	Floor to Ceiling Height Range	Rough Opening Width x Length	Ladder Width	Landing Space Range
AH2210	8'-10'	7'8" to 10'3"	22-1/2" x 54"	14-1/8"	4' - 5' 3"
AH2510	8'-10'	7'8" to 10'3"	25" x 54"	17-1/8"	4' - 5' 3"
AH2512	12'	10'5" to 12'	25" x 66"	17-1/8"	5' 11"

Additional Information

Manufacturer: Werner Co.
