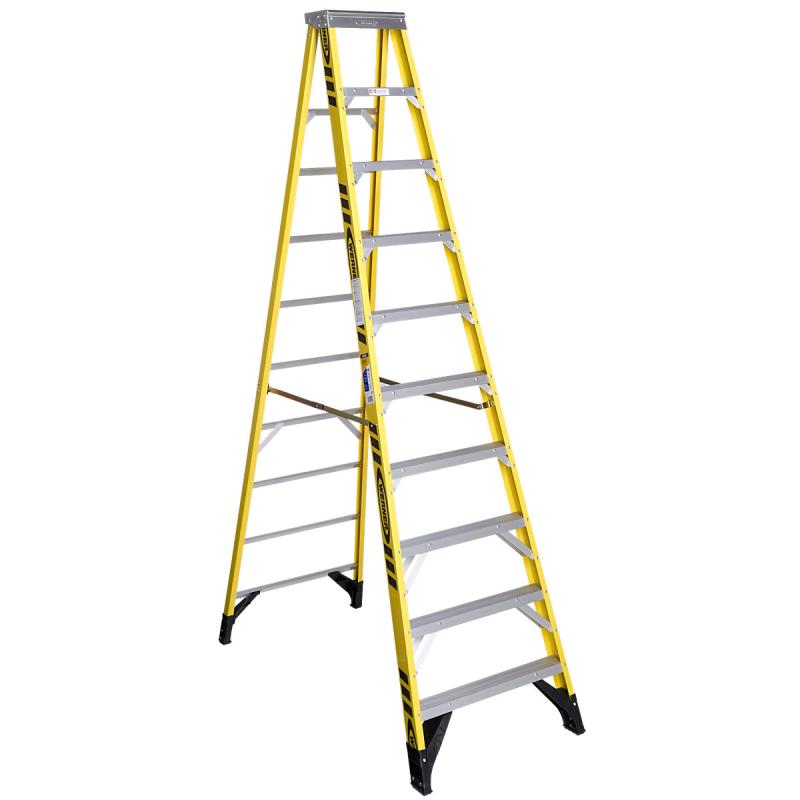

Werner 7300 stepladders have a duty rating of 375 pounds and feature heavy duty aluminum HolsterTops. With a full set of horizontals and heavy duty internal spreaders, these ladders are built for the long haul. The molded external rail shields and EDGE bracing system help decrease damage to the rails. The slip-resistant TRACTION-TRED steps are single riveted and have extra wide knee braces. The GLAS*MARK Violator stripes increase the visibility of the ladder on the jobsite. Fiberglass rails are non-conductive for working near electricity.

(click image to enlarge)

Quick Overview

Performance Overview

Style	Size	Reach Height	Load Capacity	Type
Single Sided	10'	14'	375 lbs.	Type IAA Duty Rating

Features include:

Extra heavy duty aluminum HolsterTop with thick side plates
Shoulder bolt and lock nut on top hinge;4 solid aluminum rivets attach top to each front rail
Slip-resistant TRACTION-TRED steps are single riveted and have extra wide knee braces
Heavy duty internal spreaders
Full set of rear horizontals spaced one per foot
Glas Mark Violator stripes on rails allow ladder to be more visible
The EDGE bracing system helps to decrease damage to rail
Molded external rail shield helps protect against abrasion damage
Slip-resistant foot pads attached to the EDGE structure
Plastic external rail shield helps protect against abrasion damage
Every rivet backed up by metal, metal plates or washers to protect rails
Optional manual pail shelf kit, model no. PK76-9 or automatic closing pail shelf kit model no. 76-2

Interested in this item or want more information?
Call Mon. through Fri. 6:30 AM - 5:00 PM PST
Phone: (866) 931-8027
Email: Sales@CFCdelivers.com

Can't find what you want? Give us a call and we can help you find it.

Details

Dimensions

Top Dimension: 7-1/4" x 14-7/8"

Front Rails Dimension: 3-1/8"

Front Flange Dimension: 1-3/16"

Rear Rails Dimension: 1-7/8"

Rear Flange Dimension: 1-3/16"

Steps Dimension: 3"

Specifications

Size: 10'

Reach Height: 14'

Max. Standing Height: 7'8"

Load Capacity: 375 lbs.

Type: Type IAA Duty Rating

Performance Rating: 5 Star

Material: Fiberglass

Approx. Width: 32"

Approx. Spread: 66-5/8"

With Pail Shelf: No

Spreader Material: Steel

Certifications: ANSI A14.5 (2007); OSHA

Approx. Cu. Ft. Per Unit: 11.4

Approx. Shipping Wt. Lbs.: 40.5

Additional 7400 Series Models:

Model No.	Size	Height (Size) to Platform	Rail Length	Reach Height	Max. Standing Height	Load Capacity
7303	3'	7'	1'	19-3/4"	23-1/2"	No
7303S	3'	7'	1'	19-3/4"	23-1/2"	Yes
7304	4'	8'	1'11"	21-1/2"	29-3/4"	No
7304S	4'	8'	1'11"	21-1/2"	29-3/4"	Yes
7305	5'	9'	2'10"	23-1/4"	35-7/8"	No
7305S	5'	9'	2'10"	23-1/4"	35-7/8"	Yes
7306	6'	10'	3'10"	25"	42"	No
7306S	6'	10'	3'10"	25"	42"	Yes
7308	8'	12'	5'9"	28-1/2"	54-3/4"	No
7308S	8'	12'	5'9"	28-1/2"	54-3/4"	Yes
7310	10'	14'	7'8"	32"	66-5/8"	No
7310S	10'	14'	7'8"	32"	66-5/8"	Yes
7312	12'	16'	9'7"	35-1/2"	79"	No
7312S	12'	16'	9'7"	35-1/2"	79"	Yes
FIAA06	6'	10'	3'10"	25"	42"	No

Additional Information

Manufacturer: Werner Co.
