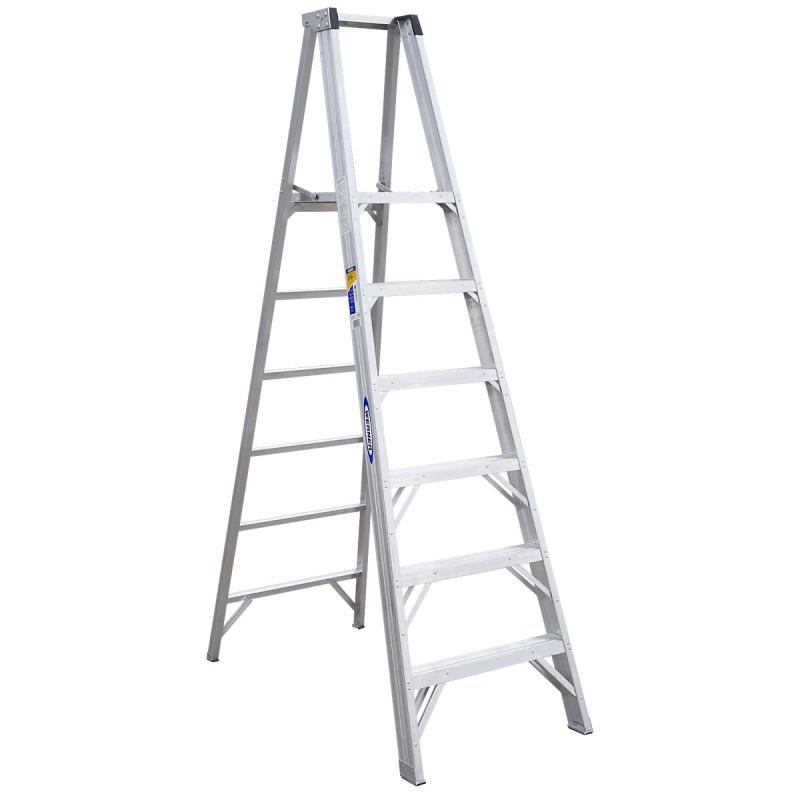

P406 6' Type IAA Aluminum Platform Ladder
P406
Werner Co.
The P400 series aluminum platform ladders have a duty rating of 375 pounds and feature a safety guard rail to encourage proper use. The large platform provides a secure and comfortable work area, and the slip-resistant TRACTION-TRED steps are double riveted and knee braced. A full set of rear horizontals are spaced one foot apart. The 10', 12' and 14' models have a duty rating of 300 pounds. These ladders are lightweight and easy to transport.
(click image to enlarge)
Quick Overview
"
Performance Overview
"
Style
Size
Reach Height
Load Capacity
Type
Twin
10'
14'
375 lbs.
Type IAA Duty Rating
Features include:
Safety guard rail
Large, platform provides secure and comfortable work area
Shoulder bolt and lock nut on top hinge; 4 solid aluminum rivets attach top to each rail
Slip-resistant TRACTION-TRED® steps are double riveted and knee-braced
Full set of rear horizontals are spaced one per foot
Heavy duty aluminum foot bracket with slip-resistant foot pad
Internal spreaders on 8’ and above
Interested in this item or want more information?
Call Mon. through Fri. 6:30 AM - 5:00 PM PST
Phone: (866) 931-8027
Email:
Sales@CFCdelivers.com
Can't find what you want? Give us a call and we can help you find it.
Details
Dimensions
Front Rails Dimension:
3-1/8"
Front Flange Dimension:
1-1/8"
Rear Rails Dimension:
1-3/4"
Rear Flange Dimension:
1"
Steps Dimension:
3"
Specifications
Size:
6'
Height (Size) to Platform:
6'
Rail Length:
8'
Reach Height:
12'
Max. Standing Height:
5'9"
Load Capacity:
375 lbs.
Type:
Type IAA Duty Rating
Performance Rating:
5 Star
Material:
Aluminum
Approx. Width:
28-1/4"
Approx. Spread:
54-3/4"
With Pail Shelf:
No
Certifications:
ANSI A14.2 (2007); OSHA
Approx. Cu. Ft. Per Unit:
10.1
Approx. Shipping Wt. Lbs.:
33.5
Additional 7400 Series Models:
Model No.
Size
Height (Size) to Platform
Rail Length
Reach Height
Max. Standing Height
Load Capacity
P404
4'
Height (Size) to Platform
6'
10'
3'10"
375 lbs.
P406
6'
8'
12'
5'9"
375 lbs.
P408
8'
4'
10'
14'
7'8"
375 lbs.
P410
10'
6'
12'
16'
9'7"
300 lbs.
P412
12'
8'
14'
18'
11'6"
300 lbs.
Additional Information
Manufacturer: Werner Co.
