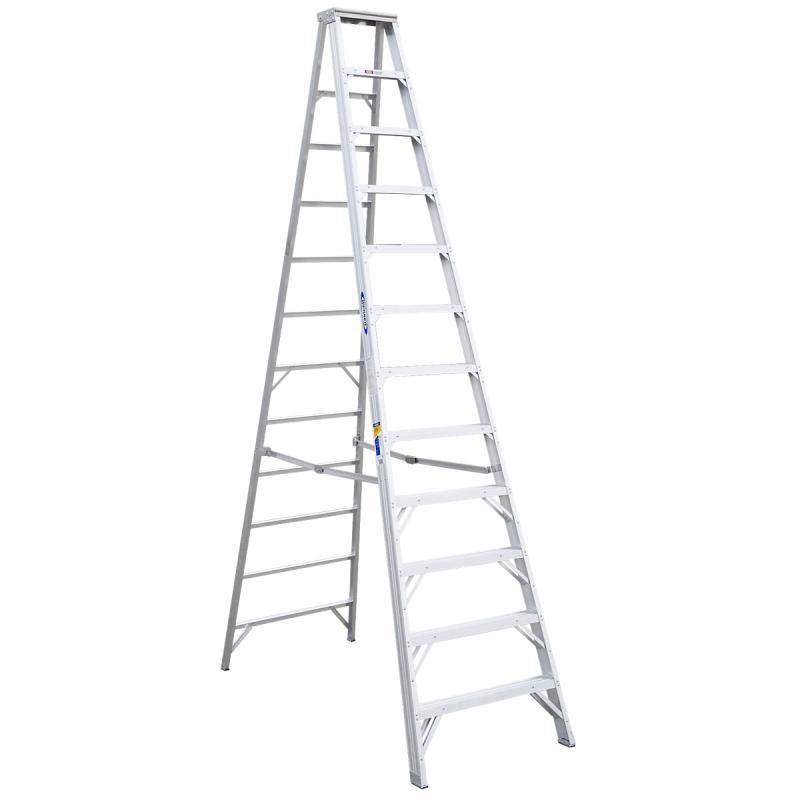

412 12' Type IAA Aluminum Step Ladder
412
Werner Co.
The aluminum 400 series of stepladders has a duty rating of 375 pounds and features heavy gauge TOOL-TRA-TOP®s. All steps are knee braced and the TRACTION-TRED® steps are slip resistant. The rear rail is a full U channel and a full set of rear horizontals are spaced one per foot. The 14' and 16' models carry a duty rating of 300 pounds
(click image to enlarge)
Quick Overview
"
Performance Overview
"
Style
Size
Reach Height
Load Capacity
Type
Single Sided
12'
16'
375 lbs.
Type IAA Duty Rating
Features include:
Heavy gauge TOOL-TRA-TOP® with thick side plates
Shoulder bolt and lock nut on top hinge; 4 solid aluminum rivets attach top to each rail
All steps are knee-braced
Slip-resistant TRACTION-TRED® steps are double riveted to rails for durability
Heavy duty internal spreaders
Full set of rear horizontals spaced one per foot
Full U-channel rear rails
Full set of rear horizontals and spaced one per foot
Slip-resistant foot pad
Optional molded pail shelf kit, model no. PK76-7
Interested in this item or want more information?
Call Mon. through Fri. 6:30 AM - 5:00 PM PST
Phone: (866) 931-8027
Email:
Sales@CFCdelivers.com
Can't find what you want? Give us a call and we can help you find it.
Details
Dimensions
Top Dimension:
7" x 14"
Front Rails Dimension:
3-1/8"
Front Flange Dimension:
1-1/8"
Rear Rails Dimension:
1-3/4"
Rear Flange Dimension:
1"
Steps Dimension:
3"
Platform Depth:
12-5/8" x 15"
Platform Width:
12-5/8" x 15"
Specifications
Size:
12'
Reach Height:
16'
Max. Standing Height:
9'7"
Load Capacity:
375 lbs.
Type:
Type IAA Duty Rating
Performance Rating:
5 Star
Material:
Aluminum
Approx. Width:
35-1/4"
Approx. Spread:
79-3/8"
With Pail Shelf:
No
Spreader Material:
Aluminum
Certifications:
ANSI A14.2 (2007); OSHA
Approx. Cu. Ft. Per Unit:
22.5
Approx. Shipping Wt. Lbs.:
54.5
Additional T7400 Series Models:
Model No.
Size
Reach Height
Max. Standing Height
Load Capacity
Type
404
4'
8'
1'11"
375 lbs.
Type IAA Duty Rating
406
6'
10'
3'10"
375 lbs.
Type IAA Duty Rating
408
8'
12'
5'9"
375 lbs.
Type IAA Duty Rating
410
10'
14'
7'8"
375 lbs.
Type IAA Duty Rating
412
12'
16'
9'7"
375 lbs.
Type IAA Duty Rating
414
14'
18'
11'6"
300 lbs.
Type IA Duty Rating
416
16'
20'
13'5"
300 lbs.
Type IA Duty Rating
Additional Information
Manufacturer: Werner Co.
