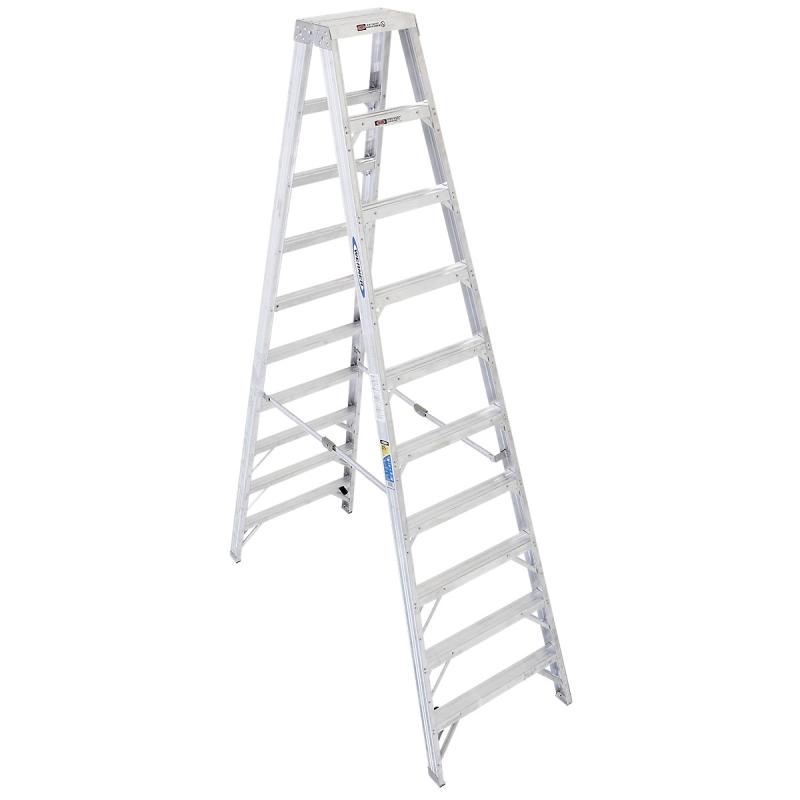

T410 10' Type IAA Aluminum Twin Ladder
T410
Werner Co.
The aluminium Multi-Use Twin Stepladder T400 series has a duty rating of 375 pounds per side making these ladders ideal for one or two-person jobs. The tops are made of heavy gauge extruded aluminum, and the steps are connected with a solid double riveted construction. The extra wide TRACTION-TRED® steps are slip resistant. The bottom steps are braced with full U channel knee braces.
(click image to enlarge)
Quick Overview
"
Performance Overview
"
Style
Size
Reach Height
Load Capacity
Type
Twin
10'
14'
375 lbs.
Type IAA Duty Rating
Features include:
Thick side plates
Heavy gauge aluminum extruded top
Shoulder bolt and lock nut on top hinge;4 solid aluminum rivets attach top to each rail
Solid double riveted construction
Heavy duty external aluminum spreaders on 4' and 6' models; internal spreaders on 8' 10' and 12'
Slip-resistant TRACTION-TRED® extra wide steps
Full “U”-channel bracing on bottom steps
Slip-resistant foot pad
Design for one or two-person jobs
Maximum load per side, including person and materials, shall not exceed duty rating of ladder
Interested in this item or want more information?
Call Mon. through Fri. 6:30 AM - 5:00 PM PST
Phone: (866) 931-8027
Email:
Sales@CFCdelivers.com
Can't find what you want? Give us a call and we can help you find it.
Details
Dimensions
Top Dimension:
8-1/4" x 14"
Front Rails Dimension:
3-1/8"
Front Flange Dimension:
1-1/8"
Rear Rails Dimension:
3-1/8"
Rear Flange Dimension:
1-1/8"
Steps Dimension:
3"
Specifications
Size:
10'
Reach Height:
14'
Max. Standing Height:
7'8"
Load Capacity:
375 lbs.
Type:
Type IAA Duty Rating
Performance Rating:
5 STAR
Material:
Aluminum
Approx. Width:
31-3/4"
Approx. Spread:
78-1/4"
With Pail Shelf:
No
Spreader Material:
Aluminum
Certifications:
ANSI A14.2 (2007); OSHA
Approx. Cu. Ft. Per Unit:
18.7
Approx. Shipping Wt. Lbs.:
55
Additional T400 Series Models:
Model No.
Size
Reach Height
Max. Standing Height
Approx. Width
Approx. Spread
Approx. Cu. Ft. Per Unit
T404
4'
8'
1'11"
21-1/4"
36-1/4"
5
T406
6'
10'
3'10"
24-3/4"
50-1/4"
8.8
T408
8'
12'
5'9"
28-1/4"
64-1/4"
13.3
T410
10'
14'
7'8"
31-3/4"
78-1/4"
18.7
T412
12'
16'
9'7"
35-1/4"
92-1/4"
25
Additional Information
Manufacturer: Werner Co.
