Core Bits Heavy Duty Orange Dry Vacuum

Diamond Products Core Bits Heavy Duty Orange Dry Vacuum

Diamond Products

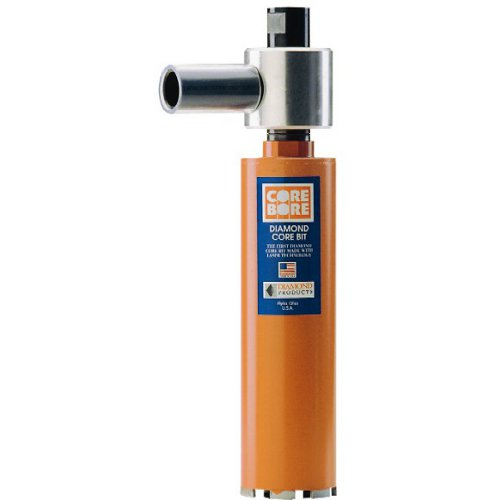

Diamond Products Core Bits Heavy Duty Orange Dry Vacuum
(click image to enlarge)
Quick Overview
  • Application : Cured concrete & Brick
  • For use with dry vacuum swivel assembly
  • Do not use in applications with steel heavier than wire mesh
  • 9" drilling depth
  • Bond : DVH
  • Core length : 9"
  • Segment height : .287"
  • Hub : 1-1/4"-12
  • Quality grade : Heavy Duty Orange Dry Vacuum Core Bit

    • Available in the following sizes :
     Part #  Size
     BDVH1500  1-1/2"
     BDVH1750  1-3/4"
     BDVH2000  2"
     BDVH2250  2-1/4"
     BDVH2500  2-1/2"
     BDVH3000  3"
     BDVH3500  3-1/2"
     BDVH4000  4"
     BDVH4500  4-1/2"
     BDVH5000  5"
     BDVH6000  6"
Interested in this item or want more information?
Call Mon. through Fri. 6:30 AM - 5:00 PM PST
Phone: (866) 931-8027
Email: Sales@CFCdelivers.com

Can't find what you want? Give us a call and we can help you find it.
Details
Designed for drilling dry in cured concrete, brick and block. Use on standard core drill motors or high speed grinders. This bit takes up where the Dry Hole Saw leaves off. All bits have 1.250"-12 threaded hubs. All bits have a 9" drilling depth.

DVH - Cured concrete, brick & block

Notes: Do not use in applications with steel heavier than wire mesh. Air vacuum swivel assembly needed to adapt to drill motors.
Additional Information
Manufacturer: Diamond Products
For More Information on the Core Bits Heavy Duty Orange Dry Vacuum, [Click Here] to Link to Manufacturer Web Site
