Details

Caterpillar Engine:

Model C15/540 Horsepower

Turbocharged/Charge air cooled

Electronically controlled

Maximum fuel consumption is 28.3 GPH

Fuel capacity - 200 gallons

Maximum engine speed - 2100 RPM

Engine oil pressure gauge (with dual low pressure shutdowns)

Engine coolant temperature gauge (with dual high temperature shutdowns)

Head Drive Power:

Power from engine is transmitted through fluid clutch gearbox

Power is transmitted to the cutting head using a Poly Chain GT Carbon belt

Blades:

Accepts 16"-18" blades on a 8" diameter spindle

50" Stackable grinding

Operations Speeds: 1,900 RPM - maximum in High Range and 1,315 RPM maximum in Low Range

Propulsion:

4 hydraulic wheel motor assemblies with integral brake and two speed function

Speed is 0-225 FPM forward/revers

Controls & Instrumentation:

Electronic joystick controlling

Lighted for night time operations

Ground drive pressure gauge

Blade coolant pressure gauge and alarm

Engine tachometer

Engine voltage meter

Additional Information

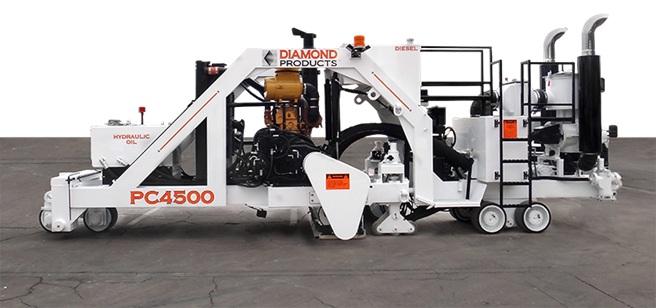

Manufacturer: Diamond Products

For More Information on the Bump Grinder, [Click Here] to Link to Manufacturer Web Site
